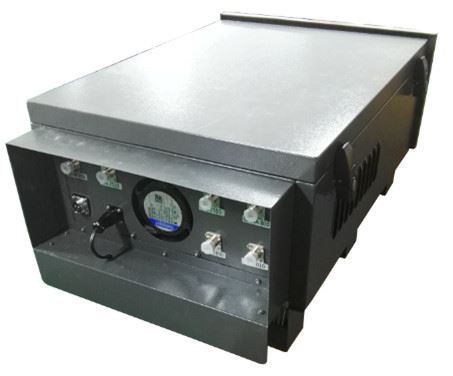

Signal Jammer Blocker

Product Introduction

With the continuous development and popularization of mobile communication devices, the level of personal mobile communication technology has been continuously improved, especially after the promotion and application of 3G 4G and 5G technology, For the prison, labor reeducation, detention centers, addiction treatment center and other similar areas of the negative role of more and more prominent, In prison, detention center and other places of supervision, mobile communication tools are banned, not only for prisoners, but also regulators should be the case. Once the phone was brought into prison and use it, will give the prison management, security, development has brought great harm. Some prisoners through illegality secretly transport mobile phone , in the prison are calling, SMS, obtaining information, threatening witnesses, Even the formation of gangs and organizations jailbreak and so on, because of this, in prison and other prison places to install mobile phone signal jammer system has reached urgency.

Product Feature

Effectively jamming 2G (CDMA/GSM/DCS)/3G (TD-SCDMA/CDMA2000/WCDMA) 4G (TD-LTE/FDD-LTE) and other frequency bands;

Using military high heat dissipation aluminum alloy heat sink and fan to assist heat dissipation, the equipment has a low operating temperature, stable performance, safety and reliability.

Using power amplifier overheating protection, overcurrent voltage protection, standing wave protection and other technologies to effectively prevent damage;

IP Remote Monitoring System , easy operation real time feedback device status.

Through the software remote centralized control management, can achieve point to point switch device set module power level, remote switch. At the same time the device opens the chassis with the indicator light

The equipment chassis adopts a special rain-proof design, which is convenient for outdoor installation and use;

Each frequency band adopts fully sealed independent modular output design, no mutual interference

Product Specificaiton

Effective shielding CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, 2.4GWIFI, 5.8G wifi, 3G WCDMA, 4G LTE,5G VHF,UHF, LOJACK ect, wireless signal. (Optional)

Effective jamming distance diameter: 120-500M ,(depending on the environment signal strength), The better choose directional antenna, shileding effective more better.

Power Supply: AC 220V

Power Consumption:1000W

Working: 247hours ongoing working.

Remote Control: RJ 45

Antenna: High Gain Directional Panel Antennas or Omni Antennas

Operating Temp: -25ºC - plus 60ºC

Humidity: 30 percent -95 percent

Net Weight: 65kgs;

Dimension:730(L)450(W)320(H)mm

Packing size:830(L)565(W)435(H)mm

Accessoris: Power cable,RF Cable antenna, RJ connector, wall-mounted expansion bolt.

Application:

Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.

Any sensitive locations where the wireless signals are not allowed.

Notice: prison jammer, office signal jammer, Security jammer, indoor jammer, outdoor jammer, Military jammer, Conference room jammer, cctv jammer, cctv jammer. churche jammer, signal jammer, cell phone jammer, 5G cell phone jammers

Jammer Monitoring Software Platform Introduction:

The Jammer Monitoring Software Platform allows customers to keep a query or control all Jammers accessed to the Internet, and all the alarm information jammers real-time feedback to the customer, so that customers can stay at home to have all information of jammers running, and adjust the control parameters of the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.

The platform enables real-time display of all Jammers' output power, operating temperature, alarm information (including over-temperature alarm, under-power alarms, VSWR alarms, Door open alarms, etc.), and all information is specific to each Channel, real-effective, convenient and quick.

This platform also allows you to change the login page photo and upload your own logo by yourself.
